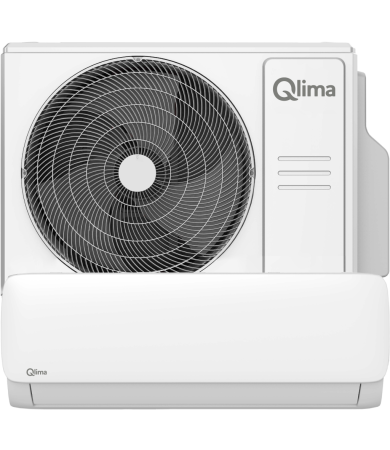

Split unit air conditioner S-JA 3523 white

Colour White

Material ABS

Model S-JA 3523

Warranty 3 years

EAN code 8713508792620

Airflow - high mode 520 m³/h

Airflow - low mode 310 m³/h

Airflow - medium mode 370 m³/h

Cooling capacity - pdesignc 3.5 kW

Dimensions indoor unit (w x d x h) 835 x 208 x 295 mm

Dimensions outdoor unit (w x d x h) 765 x 303 x 555 mm

Dimensions package indoor unit (w x d x h) 90 x 30 x 32 cm

Dimensions package outdoor unit (w x d x h) 89 x 34 x 61 cm

EAN indoor unit 8713508792606

EAN outdoor unit 8713508792613

Energy class A+++ / A++

For rooms up to indoor unit 80 - 100 m³

Heating capacity - pdesignh 2.6 kW

Indicative annual electricity consumption during average heating season (Qhe) 797 kWh/a

Indicative annual electricity consumption during cooling season (Qce) 157 kWh/a

Inverter Yes

Net. weight - indoor unit 8.7 kg

Net. weight - outdoor unit 26.7 kg

Quick connector No

Rated power cooling (max.) 4.31 kW

Rated power cooling (min.) 1.38 kW

Rated power heating (max.) 4.38 kW

Rated power heating (min.) 1.07 kW

Refrigerant - type R32

SCOP class A++

SCOP ratio 4.6 W/W

SEER class A+++

SEER ratio 8.5 W/W

Start. length refr. pipe between in- / outdoor unit 4 m

Sound power level outdoor unit (SWL) 61 dB

Weight - unit 35.4 kg

Gross weight 40.2 kg
