Split unit air conditioner pre-filled
SC 6026
House volume 85 m3
Quick Connector System
Cooling function
Comfortable heat

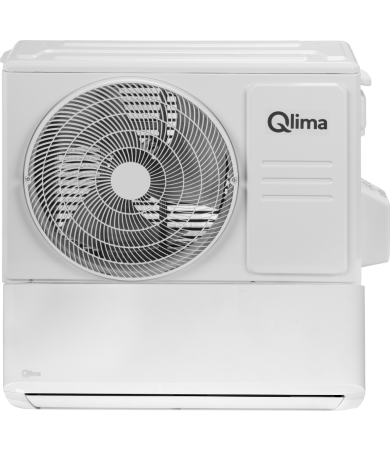

Split unit air conditioner pre-filled SC 6026 white
Split unit air conditioner pre-filled SC 6026 white
With quick connector for easy installation
Description
All benefits
- House volume 85 m3
- Quick Connector System
- Cooling function
- Comfortable heat
- Dehumidifier function
- Energy efficient
- Smart connect
- Sleep mode
- Timer function
- Very silent
Specifications
Colour White
Country of production China
Material ABS
Model SC 6026
Warranty 3 years
EAN code 8713508789293
Airflow - high mode 530 m³/h
Airflow - low mode 350 m³/h
Airflow - medium mode 400 m³/h
Cooling capacity - pdesignc 2.6 kW
Dehumidifying mode Yes
Dimensions indoor unit (w x d x h) 835 x 208 x 295 mm
Dimensions outdoor unit (w x d x h) 805 x 330 x 554 mm
Dimensions package indoor unit (w x d x h) 90 x 36 x 29 cm
Dimensions package outdoor unit (w x d x h) 92 x 37 x 62 cm
EAN indoor unit 8713508788586
EAN outdoor unit 8713508788944
Energy class A+++ / A++
For rooms up to indoor unit 60 - 85 m³
Heating capacity - pdesignh 2.5 kW
Indicative annual electricity consumption during average heating season (Qhe) 762 kWh/a
Indicative annual electricity consumption during cooling season (Qce) 107 kWh/a
Inverter Yes
Net. weight - indoor unit 9.7 kg
Net. weight - outdoor unit 29.2 kg
Quick connector Yes
Rated power cooling (max.) 3.06 kW
Rated power cooling (min.) 1.59 kW
Rated power heating (max.) 4.92 kW
Rated power heating (min.) 0.96 kW
Refrigerant - type R32
SCOP class A++
SCOP ratio 4.6 W/W
SEER class A+++
SEER ratio 8.5 W/W
Start. length refr. pipe between in- / outdoor unit 4 m
Sound power level outdoor unit (SWL) 62 dB
Weight - unit 38.9 kg
Gross weight 46.9 kg
Manuals and documentation
Manuals (3)
Technical documents (12)
- PS_Split unit air conditioner pre-filled_SC 6026_EN.pdf
- PS_Split unit air conditioner pre-filled_SC 6026_FR.pdf
- PS_Split unit air conditioner pre-filled_SC 6026_NL.pdf
- Exploded View SC 6026 - 6035 Indoor - 24072026 ENG.pdf
- EV_Split unit air conditioner pre-filled_SC 6026_SC 6035_OUT_EN.pdf
- EV_Split unit air conditioner pre-filled_SC 6026_SC 6035_OUT_ES.pdf
- Exploded View SC 6026 - 6035 Indoor - 24072026 FR.pdf
- EV_Split unit air conditioner pre-filled_SC 6026_SC 6035_OUT_FR.pdf
- Exploded View SC 6026 - 6035 Indoor - 24072026 IT.pdf
- EV_Split unit air conditioner pre-filled_SC 6026_SC 6035_OUT_IT.pdf
- Exploded View SC 6026 - 6035 Indoor - 24072026 NL.pdf
- EV_Split unit air conditioner pre-filled_SC 6026_SC 6035_OUT_NL.pdf
Compliance documents (3)
Product Reviews
Spare parts
Spare parts (0)
| EAN | Name |
|---|
Features and Benefits
Features and Benefits
-
Dehumidifier function
-
Energy efficient
-
Smart connect
-
Sleep mode
-
Timer function
-
Very silent
