Portable airconditioner with heating PH 741

Portable airconditioner with heating

PH 741

WiFi functionality

WiFi functionality

Comfortable heat

Comfortable heat

Remote control with display included

Remote control with display included

3 Fan speeds

3 Fan speeds

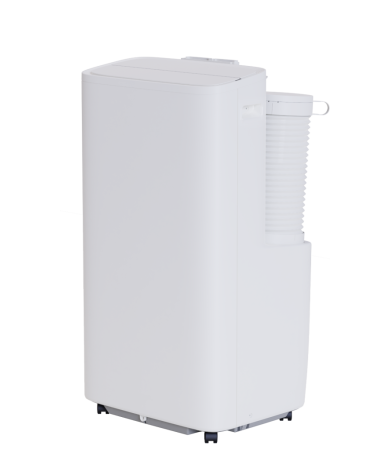

Portable airconditioner with heating PH 741 white

Product information
Experience year-round comfort with this versatile air conditioner featuring heating, cooling, and dehumidification functions. Control remotely via WIFI or use the convenient remote control. Eco-friendly R290 refrigerant and easy installation ensure hassle-free operation.

Description

Reversible Air Conditioner: Equipped with dual heating/cooling functionality, this model offers comfortable supplemental heating for year-round use.
Air Conditioning: Produces pleasant cooled air efficiently for your space.
Dehumidification: Can function as a dehumidifier. In this mode, the exhaust hose is disconnected, and warm air remains in the room.
WIFI: Control the main features remotely via the Tuya app on your smartphone.
Remote Control: Operable with a remote control.
Cooldown Effect: Removes humidity through condensation, reuses the collected water to cool the condenser, and expels it outside.
Refrigerant Gas R290: Natural and energy-efficient refrigerant with a neutral impact on the ozone layer.
Exhaust Hose: Expels hot air and humidity outside via an easy-to-install hose.
Filtration System: Equipped with a screen filter that captures large particles like dust. The filter can be cleaned with a vacuum or warm water.
Timer: Operating time can be scheduled for up to 24 hours. Automatically starts or stops based on the set program.
Program Memory: Retains the current settings in case of a power outage and resumes operation once power is restored.
Electronic Control: Allows programming of all functions via the control panel.
Adjustable Ventilation: Direct airflow by adjusting the grille and vertical/horizontal louvers.

All benefits

  • check WiFi functionality
  • check Comfortable heat
  • check Remote control with display included
  • check 3 Fan speeds
  • check Dehumidifier function
  • check Cooldown function
  • check R290 Eco-friendly refrigerant
  • check Sleep mode

Specifications

Colour White

Country of production China

Material ABS

Model PH 741

Warranty 3 years

EAN code 8713508793726

Adjustable air flow - horizontal No

Adjustable air flow - vertical Yes

Air duct Yes

Airflow - high mode 400 m³/h

Airflow - low mode 380 m³/h

Airflow - medium mode 400 m³/h

Auto restart Yes

Connectors - air duct Yes

Continuous drain Yes

Continuous drain tube Yes

COP class A

COP ratio 2.3 W/W

Defrost function Yes

Dehumidification 35 l/h

Dehumidifying capacity at 32°c / 80% RH 38 l/24 h

Dehumidifying mode Yes

Diameter air duct 150 mm

Display type LED

Economic mode No

EER class A

EER ratio 2.6 W/W

Electric safety class I

Fan mode Yes

Fan speeds 3 positions

For rooms up to 105 - 120 m³

Included - remote control Yes

Length - air duct 1.5 m

Length power cord 1.8 m

Number of timer settings 24

Operating range temperature 18~35 °C

Power supply 220-240~ / 50 / 1 V/Hz/Ph

Protection class IPX0 IPxx

Refrigerant type / GWP / Charge R290 / 3 / 220 R/g

COâ‚‚ equivalent 0.00066 tonnes

Sleep mode Yes

Sound power level (SWL) 65 dB

Sound pressure noise level at 1 m - high mode (SPL) 52 dB(A)

Thermostatic range 16~31 °C

Timer function Yes

Timer setting (max.) 24 h

Turbo function No

Wheels Yes

Dimensions (w x d x h) 463 x 380 x 840 mm

Dimensions package (w x d x h) 52 x 43 x 88 cm

Weight - unit 31 kg

Gross weight 37 kg

Manuals and documentation

Product Reviews

Spare parts

Spare parts (9) chevron-down

EAN Name
8713508795010 Display board PACBJ102850
8713508795027 Drain plug PACBJ102851
8713508789569 Evaporator temperature sensor PACBJ102045
8713508795058 Filter PACBJ102854
8713508795096 Hose inlet PACBJ102858
8713508795119 Hose outlet PACBJ102860
8713508795133 Hose pipe PACBJ102862
8713508795171 Mainboard PACBJ102866
8713508795225 Remote control PACBJ102871
Features and Benefits

Features and Benefits

  • Dehumidifier function Dehumidifier function
  • Cooldown function Cooldown function
  • R290 Eco-friendly refrigerant R290 Eco-friendly refrigerant
  • Sleep mode Sleep mode
