Portable airconditioner with heating PH 735

Portable airconditioner with heating

PH 735

WiFi functionality

WiFi functionality

Comfortable heat

Comfortable heat

Remote control

Remote control

Cooling, heating & dehumidifying

Cooling, heating & dehumidifying

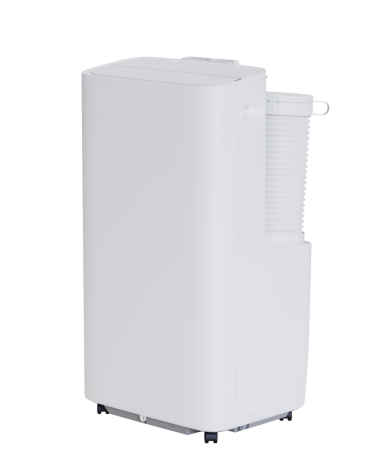

Portable airconditioner with heating PH 735 white

Product information
Reversible heating/cooling, air conditioning, and dehumidification functions.WIFI & remote control for convenience.R290 refrigerant: eco-friendly and energy-efficient.Easy-to-install exhaust and adjustable ventilation.

Description

Reversible Air Conditioner: Equipped with dual heating/cooling functionality, this model offers comfortable supplemental heating for year-round use.
Air Conditioning: The unit efficiently produces pleasant, cooled air for your space.
Dehumidification: Can be used solely as a dehumidifier. In this mode, the exhaust hose is not connected, and warm air remains in the room.
WIFI: Use your smartphone to control the main features remotely via the Tuya app.
Remote Control: Operable via a remote control.
Cooldown Effect: The unit removes humidity through condensation, reuses the water to cool the condenser, and then expels it outside.
Refrigerant Gas R290: A natural, energy-efficient, and environmentally friendly refrigerant with zero ozone impact.
Exhaust Hose: Hot air and humidity are expelled outside through an easy-to-install exhaust hose.
Filtration System: Features a screen filter that traps large particles like dust. It can be cleaned with a vacuum or warm water.
Timer: Operating time can be scheduled for up to 24 hours. The device automatically starts or stops based on the set schedule.
Program Memory: Retains settings during a power outage and resumes operation when power is restored.
Electronic Control: Allows electronic programming of all functions via the unit’s control panel.
Adjustable Ventilation: Direct airflow by adjusting the grille and orienting vertical and horizontal louvers.

All benefits

  • check WiFi functionality
  • check Comfortable heat
  • check Remote control
  • check Cooling, heating & dehumidifying
  • check 3 Fan speeds
  • check Cooldown function
  • check R290 Eco-friendly refrigerant
  • check Sleep mode

Specifications

Colour White

Country of production China

Material ABS

Model PH 735

Warranty 3 years

EAN code 8713508793702

Adjustable air flow - horizontal No

Adjustable air flow - vertical Yes

Air duct Yes

Airflow - high mode 400 m³/h

Airflow - low mode 360 m³/h

Airflow - medium mode 380 m³/h

Auto restart Yes

Connectors - air duct Yes

Continuous drain Yes

Continuous drain tube Yes

COP class A

COP ratio 2.3 W/W

Defrost function Yes

Dehumidifying capacity at 32°c / 80% RH 33 l/24 h

Dehumidifying mode Yes

Diameter air duct 150 mm

Display type LED

Economic mode No

EER class A

EER ratio 2.6 W/W

Electric safety class I

Fan mode Yes

Fan speeds 3 positions

For rooms up to 85 - 110 m³

Included - remote control No

Length - air duct 1.5 m

Length power cord 1.8 m

Number of timer settings 24

Operating range temperature 18~35 °C

Power supply 220-240~ / 50 / 1 V/Hz/Ph

Protection class IPX0 IPxx

Refrigerant type / GWP / Charge R290 / 3 / 180 R/g

COâ‚‚ equivalent 0.00035 tonnes

Sleep mode Yes

Sound power level (SWL) 65 dB

Sound pressure noise level at 1 m - high mode (SPL) 51 dB(A)

Thermostatic range 16~31 °C

Timer function Yes

Timer setting (max.) 24 h

Turbo function No

Wheels Yes

Dimensions (w x d x h) 463 x 380 x 840 mm

Dimensions package (w x d x h) 50 x 40 x 88 cm

Weight - unit 31 kg

Gross weight 35 kg

Manuals and documentation

Product Reviews

Spare parts

Spare parts (9) chevron-down

EAN Name
8713508795010 Display board PACBJ102850
8713508795027 Drain plug PACBJ102851
8713508789569 Evaporator temperature sensor PACBJ102045
8713508795058 Filter PACBJ102854
8713508795096 Hose inlet PACBJ102858
8713508795119 Hose outlet PACBJ102860
8713508795133 Hose pipe PACBJ102862
8713508795171 Mainboard PACBJ102866
8713508795225 Remote control PACBJ102871
Features and Benefits

Features and Benefits

  • 3 Fan speeds 3 Fan speeds
  • Cooldown function Cooldown function
  • R290 Eco-friendly refrigerant R290 Eco-friendly refrigerant
  • Sleep mode Sleep mode
