Portable airconditioner with heating
PH 528
Mobile airconditioner
Cooling function
Comfortable heat
Dehumidifier function

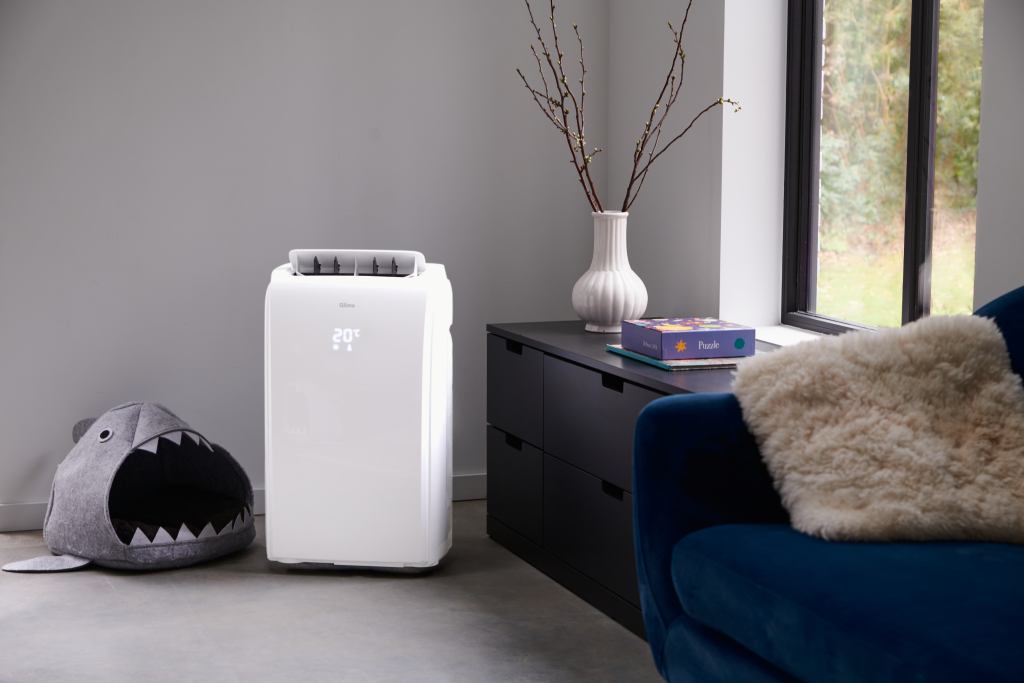

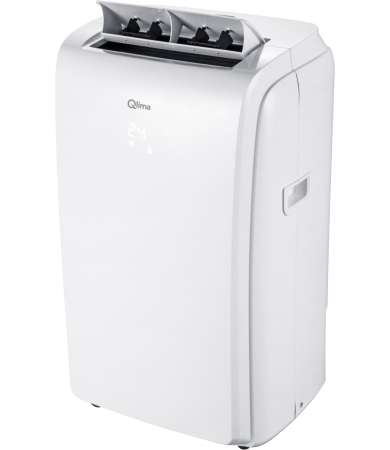

Portable airconditioner with heating PH 528 white
Portable airconditioner with heating PH 528 white
Description
All benefits
- Mobile airconditioner
- Cooling function
- Comfortable heat
- Dehumidifier function
- Portable
- Plug&play
- Remote control
- R290 Eco-friendly refrigerant
- Cooldown function
Specifications
Colour White
Country of production China
Material HIPS
Model PH 528
Warranty 3 years
EAN code 8713508789422
Adjustable air flow - horizontal Yes
Adjustable air flow - vertical Yes
Air duct Yes
Airflow - high mode 300 m³/h
Airflow - low mode 250 m³/h
Airflow - medium mode 280 m³/h
Auto restart Yes
Connectors - air duct Yes
Continuous drain Yes
Continuous drain tube No
COP class A+
COP ratio 2.9 W/W
Defrost function Yes
Dehumidification 1.1 l/h
Dehumidifying capacity at 32°c / 80% RH 26.4 l/24 h
Dehumidifying mode Yes
Diameter air duct 130 mm
Display type LED
Economic mode No
EER class A
EER ratio 2.9 W/W
Electric safety class I
Fan mode Yes
Fan speeds 3 positions
For rooms up to 65 - 90 m³
Included - remote control Yes
Length - air duct 1.5 m
Length power cord 1.5 m
Number of timer settings 1
Operating range temperature 18~35 °C
Power cable storage capability No
Power supply 220 - 240~ / 50 / 1 V/Hz/Ph
Protection class IPX0 IPxx
Refrigerant type / GWP / Charge R290 / 3 / 265 R/g
COâ‚‚ equivalent 0.0008 tonnes
Sleep mode Yes
Sound power level (SWL) 65 dB
Sound pressure noise level at 1 m - high mode (SPL) 52 dB(A)
Sound pressure noise level at 1 m - low mode (SPL) 50 dB(A)
Thermostatic range 18~32 °C
Timer function Yes
Timer setting (max.) 24 h
Turbo function No
Wheels Yes
Dimensions (w x d x h) 440 x 355 x 715 mm
Dimensions package (w x d x h) 48 x 39 x 86 cm
Weight - unit 30.4 kg
Gross weight 34.8 kg
Manuals and documentation
Manuals (3)
Technical documents (12)
Technical sheets (7)
- TS_Portable airconditioner with heating_PH 528_102215_EN.pdf
- TS_Portable airconditioner with heating_PH 528_102215_ES.pdf
- TS_Portable airconditioner with heating_PH 528_102215_FR.pdf
- TS_Portable airconditioner with heating_PH 528_102215_WA.pdf
- TS_Portable airconditioner with heating_PH 528_102215_IT.pdf
- TS_Portable airconditioner with heating_PH 528_102215_NL.pdf
- TS_Portable airconditioner with heating_PH 528_102215_NL-BE.pdf
Compliance documents (2)
Spare parts
Spare parts (11)
| EAN | Name |
|---|---|
| 8713508790794 | Air filter PACCR102517 |
| 8713508790800 | Display board PACCR102528 |
| 8713508790879 | Display board PACCR102573 |
| 8713508779294 | Drain plug PACCR101143 |
| 8713508790817 | Hose inlet PACCR102561 (till AJ05xx) |
| 8713508790831 | Hose outlet PACCR102565 (till AJ05xx) |
| 8713508779263 | Hose pipe PACCR101140 (till AJ05xx) |
| 8713508790862 | Mainboard PACCR102571 |
| 8713508790886 | Remote control PACCR102612 |
| 8713508790893 | Temperature sensor PACCR102613 |
| 8713508790909 | Wi-Fi module PACCR102614 |
