Pellet stove
Viola 100-2 S-line
Pellet stove
Comfortable heat
Adjustable temperature
Week/day programmable

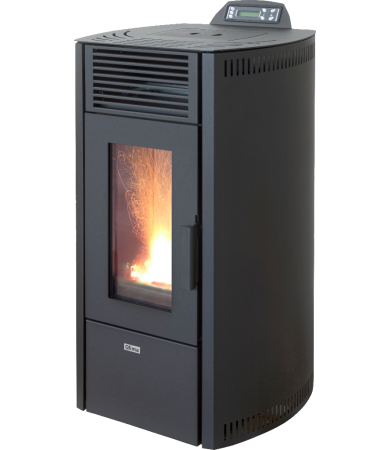

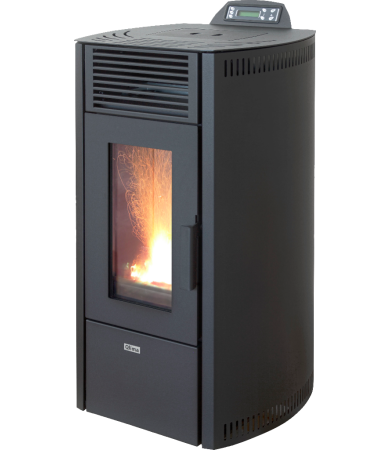

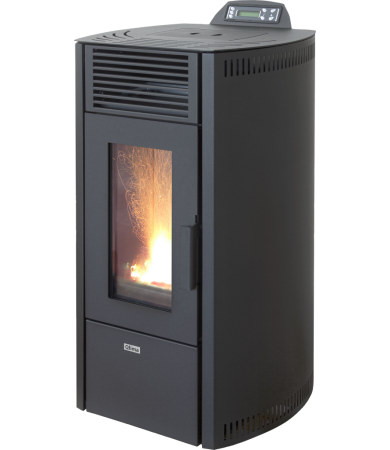

Pellet stove Viola 100-2 S-line black
Pellet stove Viola 100-2 S-line black
Description
Installation Notes
Installing a Qlima pellet stove is not difficult, but there are some things to consider. For safe use, a pellet stove requires a minimum draft of 10-12 Pa. Legislation (NEN 2757, NEN 6062, and the Building Code) specifies that a wall vent is not allowed in the Netherlands. The detailed installation guide provided with the stove contains clear instructions.
Elegance and Power
The Qlima Viola 100 S-line pellet stove in black is elegant and highly powerful. It heats large volumes (240 m³) thanks to its maximum heating capacity of 8,880 watts. This stove is ideal for heating a room of 96 m². Convenient, the Viola 100 S-line offers 7-day programming with 2 programs to choose from each day. The Econo mode maintains a constant temperature by adjusting the power every 10 minutes. Clean combustion: the dust with 13% CO₂ amounts to only 16.1 mg / m³. The exhaust is only at the back. Energy class A+. Made in Italy. Learn more about your Qlima pellet stove.
All benefits
- Pellet stove
- Comfortable heat
- Adjustable temperature
- Week/day programmable
- Adjustable temperature
- Energy saving mode
- Remote control
- Overheat protection
- Backside flue gas outlet
Specifications
Colour Black
Country of production Italy
Material Metal
Model Viola 100-2 S-line
Warranty 2 years
EAN code 8713508777009
Autonomy (min./max.) 7,3 - 20,7 h
Built-in thermostat Yes
Can be used in combined flue system No
Capacity igniter 290 W
Consumption pellets (min./max.) 0,7 - 2 kg/h
Diameter - air inlet 50
Diameter exhaust 80 mm
Ductable not ductable
Energy efficiency class A+
Efficiency nominal 88.9 %
Efficiency reduced 94 %
Exhaust location back
Flue gas temperature nominal (max.) 153.7 °C
Flue gas temperature reduced (max.) 69.9 °C
Fuel compatibility 6x30mm pellet
For rooms up to 0 - 240 m³
Hermetically sealed No
Heating input - nominal 9.8 kW
Heating input - reduced 3.5 kW
Hopper capacity 15 kg
Included - remote control Yes
No. of stars for flamme verte 7
Overheat protection Yes
Protection class IPX0 IPxx
Power consumption 60 W
Power supply 220 - 240~ / 50 / 1 V/Hz/Ph
Save mode Yes
Sound pressure noise level at 1 m - high mode (SPL) 37 dB(A)
Sound pressure noise level at 1 m - low mode (SPL) 36 dB(A)
Thermostatic range (max.) 40 °C
Thermostatic range (min.) 10 °C
Dimensions (w x d x h) 515 x 525 x 1010 mm
Dimensions package (w x d x h) 58 x 62 x 118 cm
Weight - unit 68 kg
Gross weight 78 kg
Manuals and documentation
Manuals (3)
Product specifications (7)
Product Reviews
Spare parts
SpareArticles (19)
| EAN | Name |
|---|---|
| 8713508772035 | Auger PELHAS100461 |
| 8713508774039 | Auger bushing PELHAS100499 |
| 8713508772066 | Auger motor PELHAS100464 |
| 8713508785837 | Brazier PELHAS101689 |
| 8713508786759 | Cable set PELHAS101894 |
| 8713508785851 | Deflector PELHAS101691 |
| 8713508785868 | Deflector PELHAS101692 |
| 8713508771298 | Display control panel PELHAS100438 |
| 8713508785929 | Door glass PELHAS101698 |
| 8713508772059 | Fan motor PELHAS100463 |
| 8713508784403 | Flame shield PELHAS101573 |
| 8713508772073 | Flue gas fan PELHAS100465 |
| 8713508772042 | Igniter PELHAS100462 |
| 8713508772158 | Mainboard PELHAS100469 |
| 8713508784687 | Pellet hopper door PELHAS102377 |
| 8713508784465 | Pressure switch PELHAS101570 |
| 8713508772882 | Remote control PELHAS100494 |
| 8713508785998 | Tank thermostat PELHAS101707 |
| 8713508787794 | Tuya smart kit -E- PELHAS102040 |
Features and Benefits
Features and Benefits
-
Adjustable temperature
-
Energy saving mode
-
Remote control
-
Overheat protection
-
Backside flue gas outlet
