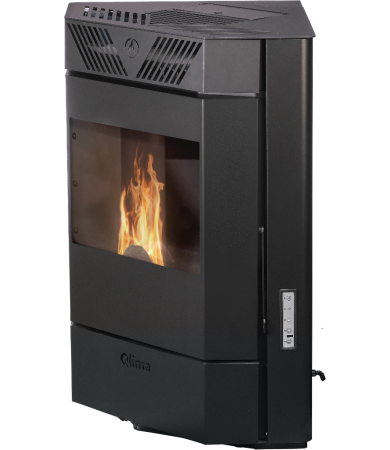

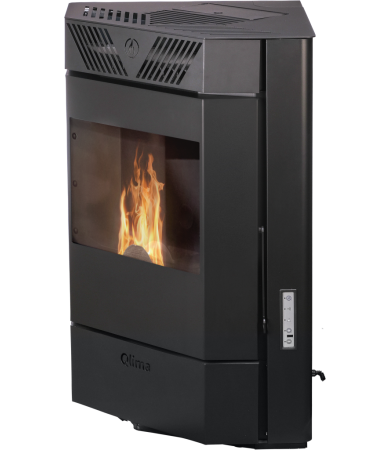

Pellet stove Isotta 94 S-Line black

Product information
The Isotta 94 S-line corner model is specifically designed to make optimal use of living space. The original and elegant Isotta 94 S-line is one of the few corner stoves on the market. The large window offers a clear view of the beautiful flame pattern of the pellets. In terms of performance, the Isotta 94 S-line has a thermal efficiency of 89.8%, making it the ideal way to keep your budget under control while maintaining a constant and pleasant warmth in your home. In the SAVE mode, the device automatically regulates switching on and off to maintain the programmed temperature. Economical and comfortable!

Description

Installation considerations Installing a Qlima pellet stove is not difficult, but there are some important points to consider. For safe use, a pellet stove requires a minimum draft of 10-12 Pa.

Legal regulations (NEN 2757, NEN 6062, and the building code) specify that a wall vent is not allowed in the Netherlands. In the detailed installation manual provided with the stove, you will find clear guidelines.

All benefits

  • check Pellet stove
  • check Comfortable heat
  • check Adjustable temperature
  • check Daytimer
  • check Energy saving mode
  • check Adjustable fan speed
  • check Remote control
  • check Overheat protection
  • check Backside flue gas outlet

Specifications

Colour Black

Country of production Italy

Material Metal

Model Isotta 94 S-Line

Warranty 2 years

EAN code 8713508778747

Autonomy (min./max.) 6,6 - 23 h

Built-in thermostat Yes

Can be used in combined flue system No

Consumption pellets (min./max.) 0,65 - 2,27 kg/h

Diameter exhaust 80 mm

Ductable not ductable

Energy efficiency class A+

Efficiency nominal 89.76 %

Efficiency reduced 93.4 %

Exhaust location top

Flue gas temperature nominal (max.) 163 °C

Flue gas temperature reduced (max.) 83 °C

Fuel compatibility 6x30mm pellet

For rooms up to 12 - 295 m³

Hermetically sealed No

Heating input - nominal 10.96 kW

Heating input - reduced 3.12 kW

Hopper capacity 15 kg

Included - remote control Yes

Overheat protection Yes

Protection class IPX0 IPxx

Power consumption 100 W

Power supply 220 - 240~ / 50 / 1 V/Hz/Ph

Save mode Yes

Sound pressure noise level at 1 m - high mode (SPL) 54 dB(A)

Sound pressure noise level at 1 m - low mode (SPL) 38 dB(A)

Dimensions (w x d x h) 760 x 570 x 950 mm

Dimensions package (w x d x h) 60 x 65 x 125 cm

Weight - unit 140 kg

Gross weight 150 kg

Manuals and documentation

Product Reviews

Spare parts

SpareArticles (17) chevron-down

EAN Name
8713508784175 Auger bushing PELHBQ101611
8713508798295 Auger from Serial ANxxxx PELHBQ103093
8713508783918 Auger motor PELHBQ100826
8713508783901 Auger up to incl Serial AMxxx PELHBQ100689
8713508783932 Brazier PELHBQ101402
8713508783956 Display control panel PELHBQ101454
8713508783970 Display flat cable PELHBQ101519
8713508783994 Door glass PELHBQ101521
8713508784045 Flue gas fan PELHBQ101615
8713508784205 Flue gas fan gasket PELHBQ102499
8713508784076 Igniter PELHBQ101619
8713508784083 Mainboard PELHBQ101620
8713508795201 PCB (AM-06xx) PELHBQ102869
8713508783949 Pressure switch PELHBQ101452
8713508784113 Remote control PELHBQ102472
8713508798493 Remote control PELHBQ103105
8713508784168 Thermostat PELHBQ102496
