Pellet stove

Diandra 90 S-Line

Pellet stove

Pellet stove

Comfortable heat

Comfortable heat

Adjustable temperature

Adjustable temperature

Daytimer

Daytimer

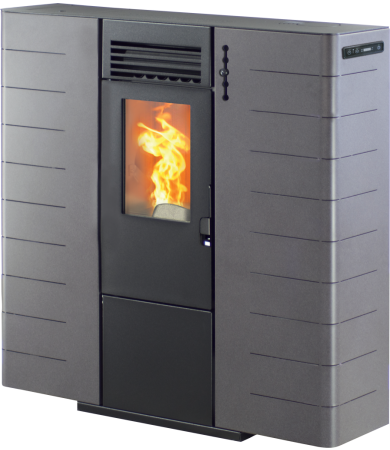

Pellet stove Diandra 90 S-Line grey

Product information
The Qlima Diandra 90 S-line has a modern design and, at just 25 cm deep, is one of the slimmest pellet stoves on the market. This model has a large pellet reservoir, guaranteeing a burn time of up to 27 hours, with a fully automatic pellet feed to the burner. It is equipped with practical daily and weekly timers, allowing you to set on and off times for each day of the week. Comfort guaranteed! With the SAVE mode, the stove automatically switches to a lower combustion mode once the desired temperature is reached. If the room temperature drops, the stove will reheat to maintain the set temperature. The Diandra 90 S-line can heat up to three rooms simultaneously, with additional channels connected for this purpose.
house Find a store
Trustpilot

Description

DUCTED PELLET STOVE – 9.72 kW
This space-saving pellet stove has a maximum capacity of 9.72 kW, can heat up to 240 m³ (1/2/3 rooms), and thanks to its high energy efficiency (92.66% - 95.93%), you can benefit from tax incentives, including the "Conto Termico" and tax deductions of 50% and 65%! With the Diandra 90 S-Line, you get more comfort for less cost!

More Comfort:

Dual daily programming
Dual duct system
Fan with 5 speeds to quickly distribute warmth
Remote control
Automatic burner cleaning
Adjustable thermostat
Continuous operation: the stove has an 11 kg tank, allowing for 27 hours of burn time.
Environmental certification: 4-star pellet stove
Lower Costs:

Energy class A+
SAVE mode: the stove automatically shuts off when the room temperature is 2°C above the set temperature and restarts when it drops 2°C below, saving energy.
Thermal efficiency of 95.93%
The exhaust of this ventilated pellet stove is both top and rear, providing versatility in placement. With multiple safety systems, safe operation is guaranteed.

How to proceed with installation? No problem. Our technicians will handle assistance for your stove! Remember that, for safe use and warranty maintenance, the installation must comply with current regulations. It is also essential for the stove's proper functioning and longevity that all maintenance procedures, both daily and periodic, are performed as outlined in the manual.

All benefits

  • check Pellet stove
  • check Comfortable heat
  • check Adjustable temperature
  • check Daytimer
  • check Energy saving mode
  • check Adjustable fan speed
  • check Backside flue gas outlet
  • check Remote control

Specifications

Colour Grey

Country of production Italy

Material Metal

Model Diandra 90 S-Line

Warranty 2 years

EAN code 8713508765778

Autonomy (min./max.) 8,57 - 27,4 h

Can be used in combined flue system Yes

Capacity igniter 270 W

Consumption pellets (min./max.) 0,6 - 2,1 kg/h

Diameter - air inlet 50

Diameter exhaust 80 mm

Ductable double

Energy efficiency class A+

Efficiency nominal 92.66 %

Efficiency reduced 95.93 %

Exhaust location back, top

Flue gas temperature nominal (max.) 112 °C

Flue gas temperature reduced (max.) 55.2 °C

Fuel compatibility 6x30mm pellet

For rooms up to 88 - 240 m³

Hermetically sealed No

Heating input - nominal 9.72 kW

Heating input - reduced 3.04 kW

Hopper capacity 11 kg

Included - remote control Yes

No. of stars for flamme verte 7

Power consumption 100 W

Power supply 220 - 240~ / 50 / 1 V/Hz/Ph

Save mode Yes

Sound pressure noise level at 1 m - high mode (SPL) 55 dB(A)

Sound pressure noise level at 1 m - low mode (SPL) 42 dB(A)

Thermostatic range (max.) 40 °C

Thermostatic range (min.) 7 °C

Dimensions (w x d x h) 935 x 250 x 935 mm

Dimensions package (w x d x h) 117 x 45 x 108 cm

Weight - unit 91 kg

Gross weight 105 kg

Manuals and documentation

Product Reviews

Spare parts

Spare parts (36) chevron-down

EAN Name
8713508767864 Adjustable feet PELHAD100356
8713508767895 Ambient temperature sensor PELHAD100359
8713508780023 Ashtray PELHAD101470
8713508767802 Auger PELHAD100350
8713508767840 Auger bracket gasket PELHAD100354
8713508767765 Auger bushing PELHAD100346
8713508771830 Auger bushing ø16mm PELHAD100454
8713508765303 Auger motor PELHAD100314
8713508006352 Auger motor PELHAD103702
8713508772240 Auger ø16mm with thin steel ring PELHAD100471
8713508765310 Brazier PELHAD100315
8713508767680 Brazier PELHAD100338
8713508767857 Brazier PELHAD100355
8713508795904 Display bracket PELHAD102935
8713508765341 Display control panel PELHAD100318
8713508767871 Display flat cable PELHAD100357
8713508767901 Door gasket PELHAD100360
8713508767826 Door glass PELHAD100352
8713508768175 Door glass PELHAD100369
8713508768335 Door handle PELHAD100375
8713508768328 Door handle double fixation PELHAD100374
8713508768298 Electric heater tube PELHAD100371
8713508768540 Encoder smoke extractor PELHAD100379
8713508779812 Exhaust pressure switch 60Pa PELHAD100567
8713508772707 Fan motor ebm PELHAD100480
8713508767789 Flue gas fan PELHAD100348
8713508765334 Igniter PELHAD100317
8713508765358 Mainboard PELHAD100319
8713508767710 Mainboard PELHAD100341
8713508776224 Mainboard cable set PELHAD100539
8713508768304 Power supply PELHAD100372
8713508766577 Remote control PELHAD100327
8713508775753 Ring 16x28x0.3 PELHAD100534
8713508767888 Smoke sensor PELHAD100358
8713508767703 Thermostat PELHAD100340
8713508787770 Tuya smart kit -AD- PELHAD102038
Features and Benefits

Features and Benefits

  • Energy saving mode Energy saving mode
  • Adjustable fan speed Adjustable fan speed
  • Backside flue gas outlet Backside flue gas outlet
  • Remote control Remote control
