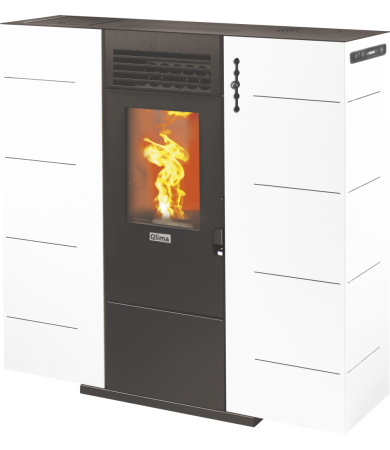

Pellet stove Diandra 50 S-Line white

Product information
The Diandra 50 S-line is distinguished by its modern white design. This Qlima pellet stove is only 25 cm deep, making it one of the slimmest pellet stoves on the market.

Description

The model features two possible exhaust channels: one on the top and one on the back. This allows you to choose the exhaust method that best fits the room’s layout. Naturally, the Qlima Diandra 50 S-line comes with the well-known Qlima benefits, including a daily timer, weekly timer, temperature sensor, and save mode. The SAVE mode offers comfortable and economical temperature control. When the set temperature is reached, the pellet stove automatically switches to a lower combustion mode or shuts off. If the room temperature drops, the device restarts to maintain the desired warmth. The Qlima Diandra 50 S-line can heat up to two rooms, as an additional channel can be connected for this purpose.

All benefits

  • check Pellet stove
  • check Comfortable heat
  • check Daytimer
  • check Adjustable temperature
  • check Energy saving mode
  • check Remote control
  • check Overheat protection
  • check Heats 1 to 2 rooms
  • check Top-, back- and side flue gas outlet

Specifications

Colour White

Country of production Italy

Material Metal

Model Diandra 50 S-Line

Warranty 2 years

EAN code 8713508773339

Autonomy (min./max.) 8 - 18 h

Can be used in combined flue system Yes

Capacity igniter 270 W

Consumption pellets (min./max.) 0,6 - 1,33 kg/h

Diameter - air inlet 50

Diameter exhaust 80 mm

Ductable single

Energy efficiency class A+

Efficiency nominal 94.01 %

Efficiency reduced 95.93 %

Exhaust location back, top

Flue gas temperature nominal (max.) 88.6 °C

Flue gas temperature reduced (max.) 55.2 °C

Fuel compatibility 6x30mm pellet

For rooms up to 88 - 150 m³

Hermetically sealed No

Heating input - nominal 6.53 kW

Heating input - reduced 3.04 kW

Hopper capacity 11 kg

Included - remote control Yes

No. of stars for flamme verte 7

Power consumption 100 W

Power supply 220 - 240~ / 50 / 1 V/Hz/Ph

Save mode Yes

Sound pressure noise level at 1 m - high mode (SPL) 55 dB(A)

Sound pressure noise level at 1 m - low mode (SPL) 42 dB(A)

Dimensions (w x d x h) 885 x 250 x 890 mm

Dimensions package (w x d x h) 116 x 51 x 62 cm

Weight - unit 72 kg

Gross weight 77 kg

Manuals and documentation

Product specifications (1) chevron-down

Product Reviews

Spare parts

SpareArticles (37) chevron-down

EAN Name
8713508767864 Adjustable feet PELHAD100356
8713508767895 Ambient temperature sensor PELHAD100359
8713508780023 Ashtray PELHAD101470
8713508767802 Auger PELHAD100350
8713508767840 Auger bracket gasket PELHAD100354
8713508767765 Auger bushing PELHAD100346
8713508771830 Auger bushing ø16mm PELHAD100454
8713508765303 Auger motor PELHAD100314
8713508006352 Auger motor PELHAD103702
8713508772240 Auger ø16mm with thin steel ring PELHAD100471
8713508765310 Brazier PELHAD100315
8713508767680 Brazier PELHAD100338
8713508795904 Display bracket PELHAD102935
8713508765341 Display control panel PELHAD100318
8713508767871 Display flat cable PELHAD100357
8713508767901 Door gasket PELHAD100360
8713508767826 Door glass PELHAD100352
8713508768175 Door glass PELHAD100369
8713508768335 Door handle PELHAD100375
8713508768328 Door handle double fixation PELHAD100374
8713508768298 Electric heater tube PELHAD100371
8713508768540 Encoder smoke extractor PELHAD100379
8713508779812 Exhaust pressure switch 60Pa PELHAD100567
8713508785714 Exhaust pressure switch bracket 60pa PELHAD101674
8713508772707 Fan motor ebm PELHAD100480
8713508767789 Flue gas fan PELHAD100348
8713508765334 Igniter PELHAD100317
8713508765358 Mainboard PELHAD100319
8713508767710 Mainboard PELHAD100341
8713508776224 Mainboard cable set PELHAD100539
8713508775395 Panel left and right PELHAD100525
8713508775685 Panel side 332x380 PELHAD100529
8713508768304 Power supply PELHAD100372
8713508766577 Remote control PELHAD100327
8713508775753 Ring 16x28x0.3 PELHAD100534
8713508767888 Smoke sensor PELHAD100358
8713508767703 Thermostat PELHAD100340
