Monoblock airco cooling and heating

WDH JA2921

No outer unit

No outer unit

R290 Eco-friendly refrigerant

R290 Eco-friendly refrigerant

3 Fan speeds

3 Fan speeds

3D Inverter technology

3D Inverter technology

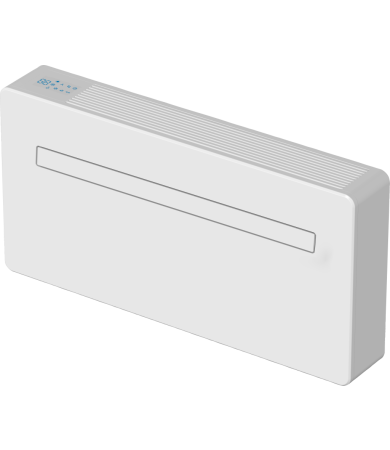

Monoblock airco cooling and heating WDH JA2921 white

Description

All benefits

  • check No outer unit
  • check R290 Eco-friendly refrigerant
  • check 3 Fan speeds
  • check 3D Inverter technology
  • check Remote control
  • check Dehumidifier function
  • check Smart connect

Specifications

Colour White

Country of production China

Model WDH JA2921

Warranty 2 years

EAN code 8713508786728

Adjustable air flow - horizontal Yes

Airco function Reversible

Air duct Yes

Airflow - high mode 520 m³/h

Control Electronic, Remote control, Wi-Fi

COP class A

Defrost function Yes

Dehumidifying capacity at 27°c / 60% RH 48 l/24 h

Dehumidifying capacity at 32°c / 80% RH 21.6 l/24 h

Dehumidifying mode Yes

Diameter air duct 180 mm

Ductable double

Economic mode Yes

EER class A

EER ratio 2.6 W/W

Energy consumption - stand-by mode 1 W

Fan mode Yes

Fan speeds 3 positions

For rooms up to 60 - 85 m³

Included - remote control Yes

Number of timer settings 24

Operating range temperature -5~35 °C

Protection class IPX0 IPxx

Rated current cooling 5 A

Rated power cooling (max.) 3.52 kW

Rated power cooling (min.) 1 kW

Rated power heating (max.) 2.962 kW

Rated power heating (min.) 0.7 kW

Refrigerant type / GWP / Charge R290 / 3 / 290 R/g

Smart Tuya

Sound power level (SWL) 58 dB

Thermostatic range 16~30 °C

Timer function Yes

Turbo function No

Dimensions (w x d x h) 1000 x 205 x 585 mm

Dimensions package (w x d x h) 112 x 34 x 66 cm

Weight - unit 42.5 kg

Gross weight 48.5 kg

Manuals and documentation

Product Reviews

Spare parts

Spare parts (15) chevron-down

EAN Name
8713508799339 Air fan MBACCV103269
8713508786889 Air filter MBACCV101910
8713508787220 Display board MBACCV101954
8713508798868 Display control panel MBACCV103139
8713508787329 Electronic expansion valve MBACCV101993
8713508799346 Fan motor MBACCV103267
8713508787312 Indoor evaporator motor MBACCV101992
8713508787213 Mainboard MBACCV101953
8713508787206 Outdoor condenser motor plastic sealed MBACCV101952
8713508787237 Remote control MBACCV101955
8713508799353 Sensor assembly MBACCV103268
8713508787336 Splashwheel motor MBACCV101994
8713508786940 Stepper motor MBACCV101919
8713508787343 Variable frequency drive plate MBACCV101995
8713508787350 Wi-Fi board MBACCV102003
Features and Benefits

Features and Benefits

  • Remote control Remote control
  • Dehumidifier function Dehumidifier function
  • Smart connect Smart connect
