Monoblock airco cooling and heating
WDH 435 PTC
No outer unit
R290 Eco-friendly refrigerant
3 Fan speeds
3D Inverter technology

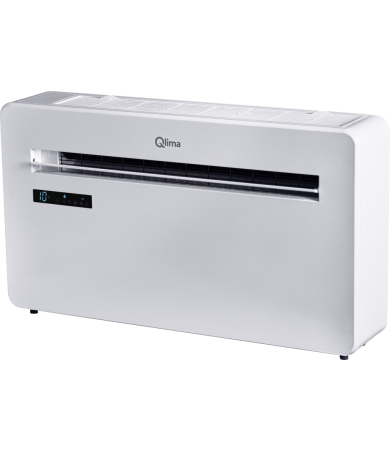

Monoblock airco cooling and heating WDH 435 PTC white
Monoblock airco cooling and heating WDH 435 PTC white
Smart cooling and heating. No outdoor unit.
Description
On warm summer days, the WDH 435 PTC delivers fast and even cooling. When outdoor temperatures drop, the powerful PTC auxiliary heater steps in to keep the indoor environment comfortable. Ideal for the in-between seasons, helping you rely less on your main heating system. The heating function is intended as supplementary heating and not as a primary heat source during harsh winter conditions.
No outdoor unit required

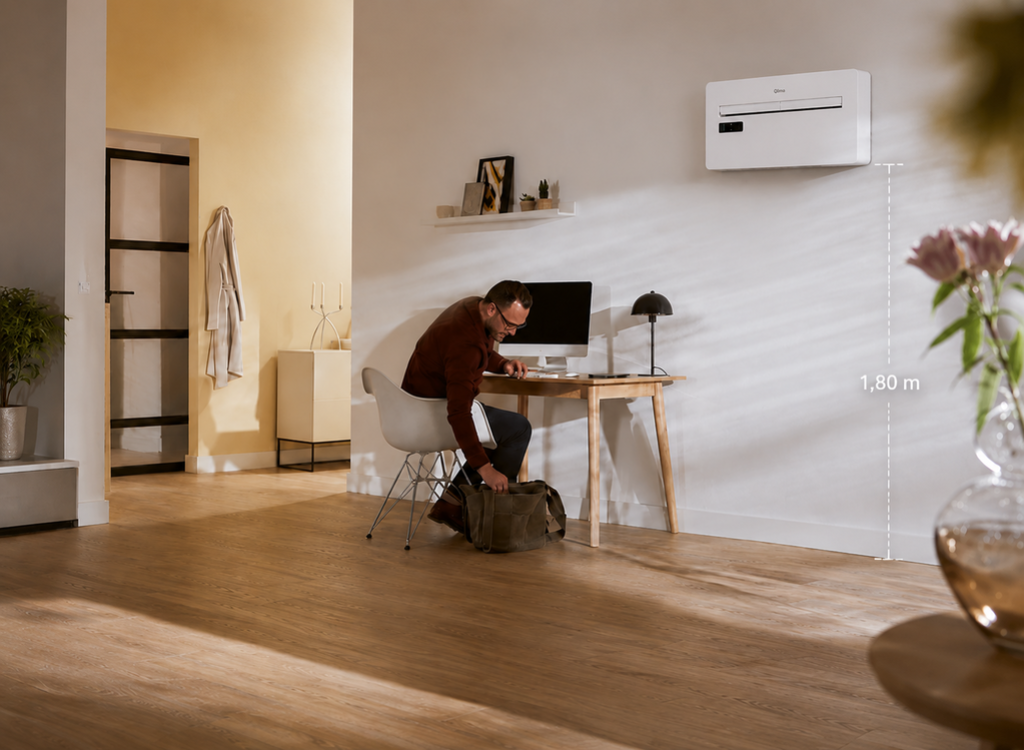

The monoblock air conditioner is installed entirely indoors, mounted against an exterior wall. Two discreet openings provide the necessary air circulation, eliminating the need for a separate outdoor unit. There is also no need for exhaust hoses through windows or doors. The system is designed for easy self-installation, saving both time and installation costs.
3-in-1
In addition, the WDH 435 PTC contributes to a more pleasant indoor climate by ventilating, dehumidifying and filtering the air during cooling. This ensures fresher air and helps reduce moisture-related issues in the home.
Key benefits of the Qlima Monoblock WDH 435 PTC:
- Extra powerful cooling capacity of 3.5 kW
- Air conditioning without an outdoor unit
- PTC auxiliary heating for added comfort in spring and autumn
- Ventilates, dehumidifies and filters the air
- Easy installation, no installer required
- Sleek and compact design for indoor mounting
All benefits
- No outer unit
- R290 Eco-friendly refrigerant
- 3 Fan speeds
- 3D Inverter technology
- Dehumidifier function
- Smart connect
- Remote control
Specifications
Colour White
Country of production China
Model WDH 435 PTC
Warranty 2 years
EAN code 8713508001050
Adjustable air flow - horizontal Yes
Airco function Reversible
Air duct Yes
Airflow - high mode 550 m³/h
COP class A+
COP ratio 3.6 W/W
Defrost function Yes
Dehumidifying capacity at 27°c / 60% RH 26 l/24 h
Dehumidifying capacity at 32°c / 80% RH 58 l/24 h
Dehumidifying mode Yes
Diameter air duct 180 mm
Ductable double
Economic mode Yes
EER class A
EER ratio 2.6 W/W
Energy consumption - stand-by mode 1.3 W
Fan mode Yes
Fan speeds 3 positions
For rooms up to 60 - 110 m³
Included - remote control Yes
Number of timer settings 24
Operating range temperature -7~35 °C
Protection class IPX0 IPxx
Rated current cooling 6 A
Rated power cooling (max.) 4.1 kW
Rated power cooling (min.) 1.3 kW
Rated power heating (max.) 4.1 kW
Rated power heating (min.) 0.8 kW
Refrigerant type / GWP / Charge R290 / 3 / 290 R/g
Sound power level (SWL) 59 dB
Thermostatic range 16~30 °C
Timer function Yes
Turbo function Yes
Dimensions (w x d x h) 1000 x 205 x 585 mm
Dimensions package (w x d x h) 112 x 34 x 66 cm
Weight - unit 43.5 kg
Gross weight 49.5 kg
Manuals and documentation
Manuals (2)
Product specifications (5)
Product Reviews
Spare parts
Spare parts (15)
| EAN | Name |
|---|---|
| 8713508004686 | Air grill set MBACCV103554 |
| 8713508001845 | Display board MBACCV103462 |
| 8713508001852 | Electronic expansion valve MBACCV103463 |
| 8713508795034 | Fan assembly MBACCV102852 |
| 8713508001869 | Filter MBACCV103464 |
| 8713508787312 | Indoor evaporator motor MBACCV101992 |
| 8713508001890 | Mainboard MBACCV103467 |
| 8713508793061 | Outdoor condenser motor and fan MBACCV102697 |
| 8713508793115 | Remote control MBACCV102702 |
| 8713508004693 | Sealing strip MBACCV103555 |
| 8713508787336 | Splashwheel motor MBACCV101994 |
| 8713508786940 | Stepper motor MBACCV101919 |
| 8713508004709 | Wall duct 450x600mm |
| 8713508006314 | Water level sensor MBACCV103698 |
| 8713508001906 | Wi-Fi module MBACCV103468 |
Features and Benefits
Features and Benefits
-
Dehumidifier function
-
Smart connect
-
Remote control
