Monoblock airco cooling and heating

WDH 429 PTC

No outer unit

R290 Eco-friendly refrigerant

3 Fan speeds

3D Inverter technology

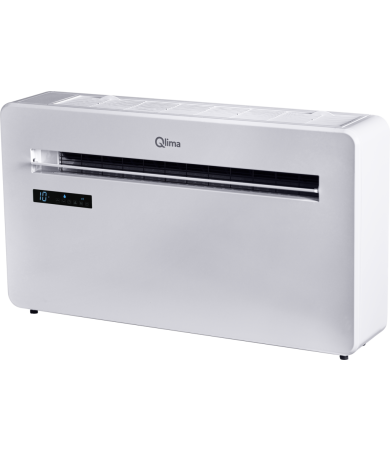

Monoblock airco cooling and heating WDH 429 PTC white

Monoblock airco cooling and heating WDH 429 PTC white

Product information

Always the right climate, in one smart unit

At home, you want to feel comfortable. Whether you are sleeping, working or relaxing, comfort and a healthy indoor climate truly make the difference. Not too warm, not too cold, and with fresh air that helps you focus or unwind. With the Qlima Monoblock WDH 429 PTC, you can precisely tailor the temperature in your bedroom, hobby room or home office to suit your needs.

Find a store

Description

One solution for cooling, extra warmth and cleaner air

The Qlima Monoblock WDH 429 PTC is more than just an air conditioner. It is a complete climate system that gives you full control over indoor comfort all year round. On warm summer days, it quickly delivers pleasant cooling. When temperatures drop, the powerful PTC auxiliary heater provides additional warmth. Ideal for spring and autumn, allowing you to rely less on your central heating. The system is designed as supplementary heating and not as a primary heat source during harsh winter conditions.

Good for you and your living space

While cooling, the air in the room is automatically ventilated, dehumidified and filtered. This contributes to a healthier indoor climate and helps prevent issues such as dampness and mould. Clean, dry air is more comfortable to live in and better for your home.

Is the Qlima Monoblock WDH 429 PTC right for you?

Suitable for: homeowners, as installation requires drilling through an exterior wall
What it is: a compact air conditioner with heating function in a single indoor unit
Cooling: comfortably cools a room of up to approx. 25 m²*
Heating: raises the temperature of the same room by a few degrees using PTC auxiliary heating
Installation: easy to install yourself, no installer required
Good to know: not intended for heating large rooms or entire homes

* Surface area indication based on average ceiling height.

Air conditioner or heat pump?

Many users refer to it as an air conditioner, as the cooling function is used most often. Technically, however, the WDH 429 PTC is a heat pump system: it can both cool and heat. Thanks to two fully separated airflows, heat is efficiently expelled outdoors or extracted from the outside air. With the touch of a button, you simply select the function that suits the season.

All benefits

No outer unit
R290 Eco-friendly refrigerant
3 Fan speeds
3D Inverter technology
Dehumidifier function
Smart connect
Remote control

Specifications

Colour White

Country of production China

Model WDH 429 PTC

Warranty 2 years

EAN code 8713508001043

Adjustable air flow - horizontal Yes

Airco function Reversible

Air duct Yes

Airflow - high mode 520 m³/h

COP class A

COP ratio 3.1 W/W

Defrost function Yes

Dehumidifying capacity at 27°c / 60% RH 21.6 l/24 h

Dehumidifying capacity at 32°c / 80% RH 48 l/24 h

Dehumidifying mode Yes

Diameter air duct 180 mm

Ductable double

Economic mode Yes

EER class A

EER ratio 2.6 W/W

Energy consumption - stand-by mode 1.3 W

Fan mode Yes

Fan speeds 3 positions

For rooms up to 60 - 85 m³

Included - remote control Yes

Number of timer settings 24

Operating range temperature -7~35 °C

Protection class IPX0 IPxx

Rated current cooling 5 A

Rated power cooling (max.) 3.52 kW

Rated power cooling (min.) 1 kW

Rated power heating (max.) 3.52 kW

Rated power heating (min.) 0.7 kW

Refrigerant type / GWP / Charge R290 / 3 / 290 R/g

Sound power level (SWL) 58 dB

Thermostatic range 16~30 °C

Timer function Yes

Turbo function Yes

Dimensions (w x d x h) 1000 x 205 x 585 mm

Dimensions package (w x d x h) 112 x 34 x 66 cm

Weight - unit 43 kg

Gross weight 49 kg

Manuals and documentation

Manuals (2)

Product specifications (3)

Compliance documents (2)

Product Reviews

Spare parts

Spare parts (14)

EAN	Name
8713508004686	Air grill set MBACCV103554
8713508001845	Display board MBACCV103462
8713508001852	Electronic expansion valve MBACCV103463
8713508795034	Fan assembly MBACCV102852
8713508001869	Filter MBACCV103464
8713508787312	Indoor evaporator motor MBACCV101992
8713508001883	Mainboard MBACCV103466
8713508793061	Outdoor condenser motor and fan MBACCV102697
8713508004693	Sealing strip MBACCV103555
8713508787336	Splashwheel motor MBACCV101994
8713508786940	Stepper motor MBACCV101919
8713508004709	Wall duct 450x600mm
8713508006314	Water level sensor MBACCV103698
8713508001906	Wi-Fi module MBACCV103468

Features and Benefits

Dehumidifier function
Smart connect
Remote control
