Monoblock airco cooling and heating WDH 235 PTC

Monoblock airco cooling and heating

WDH 235 PTC

No outer unit

No outer unit

R290 Eco-friendly refrigerant

R290 Eco-friendly refrigerant

Cooling function

Cooling function

Comfortable heat

Comfortable heat

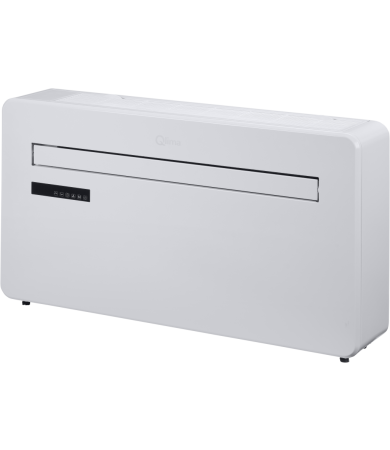

Monoblock airco cooling and heating WDH 235 PTC white

Product information
Your bedroom or workplace quickly cooled in summer with an air conditioner without an outdoor unit. Energy-saving additional heating on colder days. No installer needed.
house Find a store
Trustpilot

Description

A single system for cool, warm and filtered air

Qlima monobloc WDH 235 PTC is not a ‘conventional air conditioning unit’. It's a heat pump system. This means that you can influence the room temperature all year round. On sunny summer days, this unit will cool you down in a flash. On cooler spring or autumn days, enjoy comfortable warmth by activating the heating function. Don't think of it as a main heater, as the monobloc is not designed for really harsh winters, as it has insufficient heating capacity.

Healthy for you and your home

When the monobloc is in cooling mode, the air is automatically ventilated, dehumidified and purified at the same time. This is good for your own health, but also for the health of the room. Poor ventilation encourages damp and mould. In a well-ventilated house, they don't stand a chance.

Is the WDH235 PTC Monoblock air conditioner right for you?

For whom: all homeowners need to drill a hole in the wall.

This is an indoor unit (without outdoor unit) capable of heating or cooling rooms of up to 44m²*.

Installation: you can do it yourself. Perhaps with a little help, but it will save you the expense of an installer.

Heating: same room so a few degrees warmer

Good to know: the heating function is not meant to heat your whole house, especially on days of harsh winter weather. Heating larger rooms in your home? Then our pellet stoves might be an idea.

An air conditioner or a heat pump?

Most people will say ‘I bought a great air conditioner now!’ when talking about the Qlima WDH 235 PTC Monoblock. Airco is front of mind, as the cooling function is the most commonly used. But technically, it is a heat pump. That's what we call all air-conditioned systems that can cool as well as heat.

The Qlima WDH 235 PTC Monoblock Air Conditioner has two separate air flows, completely separate from each other. One draws the cooling air from outside. The heat from inside is removed to the outside. When it gets colder, you easily reverse that process. The refrigerant then flows in the other direction. In that case, the heat pump extracts heat from the outside air and blows the warm air inside.



All benefits

  • check No outer unit
  • check R290 Eco-friendly refrigerant
  • check Cooling function
  • check Comfortable heat
  • check Dehumidifier function
  • check 3D Inverter technology
  • check Ultra silent mode
  • check Smart connect
  • check Adjustable fan speed
  • check Monoblock heatpump

Specifications

Colour White

Country of production China

Model WDH 235 PTC

Warranty 2 years

EAN code 8713508792842

Adjustable air flow - horizontal Yes

Airco function Reversible

Air duct Yes

Airflow - high mode 550 m³/h

COP class A+

COP ratio 3.6 W/W

Defrost function Yes

Dehumidifying capacity at 27°c / 60% RH 26 l/24 h

Dehumidifying capacity at 32°c / 80% RH 58 l/24 h

Dehumidifying mode Yes

Diameter air duct 180 mm

Ductable double

Economic mode Yes

EER class A

EER ratio 2.6 W/W

Energy consumption - stand-by mode 1.3 Wh

Fan mode Yes

Fan speeds 3 positions

For rooms up to 60 - 110 m³

Included - remote control Yes

Number of timer settings 24

Operating range temperature -7~35 °C

Protection class IPX0 IPxx

Rated current cooling 6 A

Rated power cooling (max.) 4.1 kW

Rated power cooling (min.) 1.3 kW

Rated power heating (max.) 4.1 kW

Rated power heating (min.) 0.8 kW

Refrigerant type / GWP / Charge R290 / 3 / 290 R/g

Smart Tuya

Sound power level (SWL) 59 dB

Thermostatic range 16~30 °C

Timer function Yes

Turbo function Yes

Dimensions (w x d x h) 1000 x 205 x 585 mm

Dimensions package (w x d x h) 112 x 34 x 66 cm

Weight - unit 43.5 kg

Gross weight 49.5 kg

Manuals and documentation

Product Reviews

Spare parts

SpareArticles (17) chevron-down

EAN Name
8713508786889 Air filter MBACCV101910
8713508004686 Air grill set MBACCV103554
8713508787220 Display board MBACCV101954
8713508793085 Electronic expansion valve MBACCV102699
8713508793092 Fan MBACCV102700
8713508795034 Fan assembly MBACCV102852
8713508787312 Indoor evaporator motor MBACCV101992
8713508793108 Mainboard MBACCV102701
8713508001876 Mainboard MBACCV103465
8713508793061 Outdoor condenser motor and fan MBACCV102697
8713508793115 Remote control MBACCV102702
8713508004693 Sealing strip MBACCV103555
8713508787336 Splashwheel motor MBACCV101994
8713508786940 Stepper motor MBACCV101919
8713508796208 Variable frequency drive plate MBACCV102954
8713508004709 Wall duct 450x600mm
8713508793139 Wi-Fi board MBACCV102704
