Monoblock airco cooling and heating WDH 229

Monoblock airco cooling and heating

WDH 229

No outer unit

No outer unit

R290 Eco-friendly refrigerant

R290 Eco-friendly refrigerant

Cooling function

Cooling function

Comfortable heat

Comfortable heat

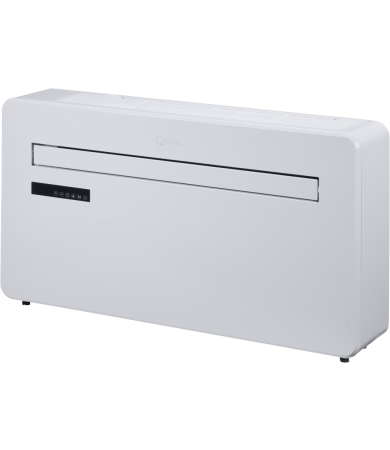

Monoblock airco cooling and heating WDH 229 white

Cool your bedroom or workspace quickly in the summer with an air conditioner that doesn’t require an outdoor unit. Energy-saving heating for colder days. No installer needed.You spend a lot of time at home, especially in recent years. It’s important that your workspace or bedroom is comfortable and healthy—not too warm, not too cold, with clean air that helps you stay focused or sleep well. The perfect temperature for your bedroom, study, or hobby room is easily managed with the Qlima Monoblock WDH229.
Trustpilot

Description

One system for cooling, heating, and filtered air

The Qlima Monoblock WDH229 is not just an “air conditioner”; it’s a complete climate control system. This means that all year round, you have control over the room temperature. On sunny summer days, this unit cools the room in no time. During cooler spring or autumn days, you can warm the space comfortably by using the heat pump mode, reducing the need to turn up your main heating. However, note that this unit is not designed to be the primary heating source for extremely cold winter weather.

Healthy for you and your home

When you use the Monoblock in cooling mode, it also automatically ventilates, dehumidifies, and purifies the air, which benefits both your health and the health of the space. Poor ventilation can lead to dampness and mold, but a well-ventilated room prevents these issues.

Is the WDH229 Monoblock Air Conditioner right for you?

For whom: Homeowners (installation requires drilling).
What it is: An “air conditioner and heater” in one indoor unit that can quickly lower the temperature and provide supplemental heating in spring or fall.
Cooling: Comfortably cools a space up to 25 m²*.
Heating: Warms the same space by a few degrees.
Installation: You can install it yourself, possibly with some help—no need to hire an installer.
Good to know: The heating function is not meant to heat your entire home, especially during severe winter weather. For larger spaces, consider one of our pellet stoves.


*This is an estimate of the minimum coverage area, assuming the room height is average. If your ceilings are lower, the Monoblock can cool a larger area. See more: cooling capacities explained.

All benefits

  • check No outer unit
  • check R290 Eco-friendly refrigerant
  • check Cooling function
  • check Comfortable heat
  • check Dehumidifier function
  • check 3D Inverter technology
  • check Ultra silent mode
  • check Smart connect
  • check Adjustable fan speed
  • check Monoblock heatpump

Specifications

Colour White

Country of production China

Model WDH 229

Warranty 2 years

EAN code 8713508786094

Adjustable air flow - horizontal Yes

Airco function Reversible

Air duct Yes

Airflow - high mode 520 m³/h

COP class A

COP ratio 3.1 W/W

Defrost function Yes

Dehumidifying capacity at 27°c / 60% RH 48 l/24 h

Dehumidifying capacity at 32°c / 80% RH 21.6 l/24 h

Dehumidifying mode Yes

Diameter air duct 180 mm

Ductable double

Economic mode Yes

EER class A

EER ratio 2.6 W/W

Energy consumption - stand-by mode 1 W

Fan mode Yes

Fan speeds 3 positions

For rooms up to 60 - 85 m³

Included - remote control Yes

Number of timer settings 24

Operating range temperature -5~35 °C

Protection class IPX0 IPxx

Rated current cooling 5 A

Rated power cooling (max.) 3.52 kW

Rated power cooling (min.) 1 kW

Rated power heating (max.) 2.962 kW

Rated power heating (min.) 0.7 kW

Refrigerant type / GWP / Charge R290 / 3 / 290 R/g

Smart Tuya

Sound power level (SWL) 58 dB

Thermostatic range 16~30 °C

Timer function Yes

Turbo function No

Dimensions (w x d x h) 1000 x 205 x 585 mm

Dimensions package (w x d x h) 112 x 34 x 66 cm

Weight - unit 42.5 kg

Gross weight 48.5 kg

Manuals and documentation

Product Reviews

Spare parts

Spare parts (19) chevron-down

EAN Name
8713508799339 Air fan MBACCV103269
8713508786889 Air filter MBACCV101910
8713508004686 Air grill set MBACCV103554
8713508787220 Display board MBACCV101954
8713508787329 Electronic expansion valve MBACCV101993
8713508792668 Fan MBACCV102673
8713508795034 Fan assembly MBACCV102852
8713508799346 Fan motor MBACCV103267
8713508787312 Indoor evaporator motor MBACCV101992
8713508787213 Mainboard MBACCV101953
8713508787206 Outdoor condenser motor plastic sealed MBACCV101952
8713508787237 Remote control MBACCV101955
8713508004693 Sealing strip MBACCV103555
8713508799353 Sensor assembly MBACCV103268
8713508787336 Splashwheel motor MBACCV101994
8713508786940 Stepper motor MBACCV101919
8713508787343 Variable frequency drive plate MBACCV101995
8713508004709 Wall duct 450x600mm
8713508787350 Wi-Fi board MBACCV102003
Features and Benefits

Features and Benefits

  • Dehumidifier function Dehumidifier function
  • 3D Inverter technology 3D Inverter technology
  • Ultra silent mode Ultra silent mode
  • Smart connect Smart connect
  • Adjustable fan speed Adjustable fan speed
  • Monoblock heatpump Monoblock heatpump
