Monoblock airco cooling and heating WDH 224 PTC

Monoblock airco cooling and heating

WDH 224 PTC

No outer unit

No outer unit

Smart connect

Smart connect

Cooling function

Cooling function

Comfortable heat

Comfortable heat

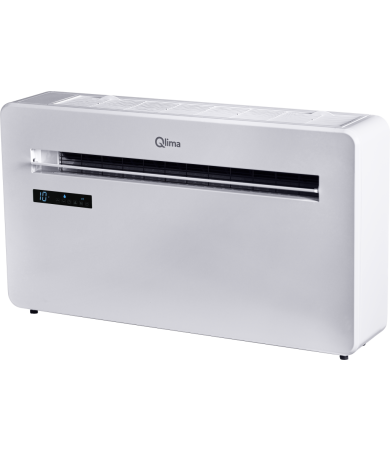

Monoblock airco cooling and heating WDH 224 PTC white

Product information
Easily cool your bedroom or office in the summer with an air conditioner that requires no outdoor unit. It also functions as an efficient supplementary heating system for cooler days, providing cost-effective warmth when needed. No professional installation required.

Description

All benefits

  • check No outer unit
  • check Smart connect
  • check Cooling function
  • check Comfortable heat
  • check Dehumidifier function
  • check 3D Inverter technology
  • check Adjustable fan speed
  • check Monoblock heatpump

Specifications

Colour White

Country of production China

Model WDH 224 PTC

Warranty 2 years

EAN code 8713508794785

Adjustable air flow - horizontal Yes

Airco function Reversible

Air duct Yes

Airflow - high mode 520 m³/h

COP ratio 3.6 W/W

Defrost function Yes

Dehumidifying capacity at 27°c / 60% RH 38 l/24 h

Dehumidifying capacity at 32°c / 80% RH 17.2 l/24 h

Dehumidifying mode Yes

Diameter air duct 180 mm

Ductable double

Economic mode Yes

EER class A

EER ratio 2.6 W/W

Energy consumption - stand-by mode 1 W

Fan mode Yes

Fan speeds 3 positions

For rooms up to 58 - 78 m³

Included - remote control Yes

Number of timer settings 24

Operating range temperature -5~35 °C

Protection class IPX0 IPxx

Rated current cooling 5 A

Rated power cooling (max.) 2.45 kW

Rated power heating (max.) 2.63 kW

Refrigerant type / GWP / Charge R290 / 3 / 298 R/g

Smart Tuya

Sound power level (SWL) 59 dB

Thermostatic range 16~30 °C

Timer function Yes

Turbo function No

Dimensions (w x d x h) 1000 x 205 x 585 mm

Dimensions package (w x d x h) 112 x 34 x 66 cm

Weight - unit 44.5 kg

Gross weight 50.5 kg

Manuals and documentation

Product Reviews

Spare parts

Spare parts (13) chevron-down

EAN Name
8713508786889 Air filter MBACCV101910
8713508004686 Air grill set MBACCV103554
8713508797137 Display board MBACCV103009
8713508797144 Electronic expansion valve MBACCV103010
8713508795034 Fan assembly MBACCV102852
8713508797168 Mainboard MBACCV103012
8713508793061 Outdoor condenser motor and fan MBACCV102697
8713508004693 Sealing strip MBACCV103555
8713508787336 Splashwheel motor MBACCV101994
8713508797175 Stepper motor MBACCV103013
8713508004709 Wall duct 450x600mm
8713508006314 Water level sensor MBACCV103698
8713508793139 Wi-Fi board MBACCV102704
Features and Benefits

Features and Benefits

  • Dehumidifier function Dehumidifier function
  • 3D Inverter technology 3D Inverter technology
  • Adjustable fan speed Adjustable fan speed
  • Monoblock heatpump Monoblock heatpump
