Duo split unit air conditioner
SCM 70 DUO
Duo-split (1:2)
Quick Connector System
Cools with label A+++
Heats with label A++

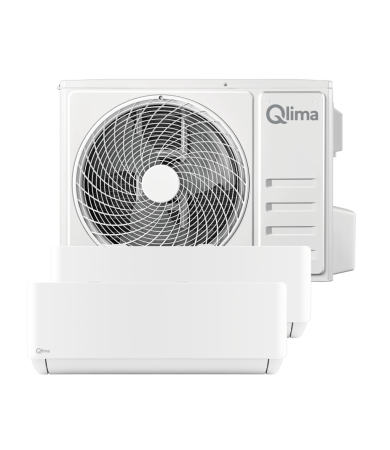

Duo split unit air conditioner (1:2) SCM 70 DUO white
Duo split unit air conditioner (1:2) SCM 70 DUO white
Flexible connection of two indoor units to a single outdoor unit. Each indoor unit can operate independently.
Description
Ideal Multi-Room Climate Control Solution
This energy-efficient multi-split air conditioner with 2 indoor units is the perfect solution for those looking for smart climate control, low energy costs, and flexible room-by-room comfort — all powered by one efficient outdoor unit.
Save Energy with Advanced Inverter Technology
This air conditioner is powered by high-efficiency Inverter technology, which automatically adjusts performance to match your needs. This results in lower energy usage, while maintaining a stable and comfortable indoor temperature. Easily switch between cooling, heating, and dehumidifying modes for maximum flexibility throughout the year.
Smart Wi-Fi Control for Maximum Convenience
Control your indoor climate anytime, anywhere with built-in Wi-Fi and the Tuya Smart App. Adjust temperature settings, change modes, or schedule operation directly from your smartphone, giving you full control over comfort and energy use.
Quick and Easy Installation
Thanks to the screw-type quick connector system, installation is fast and efficient, reducing installation time and costs. The multi-split configuration allows you to connect three indoor units to one outdoor unit, making it ideal for multi-room homes, apartments, or offices.
Reliable Performance in All Weather Conditions
Designed for durability, this air conditioning system operates efficiently even at outdoor temperatures as low as -25°C. Features such as frost protection and corrosion-resistant outdoor components ensure long-lasting performance in both hot summers and cold winters.
Quiet Operation and Clean Indoor Air
Enjoy a peaceful indoor environment with low-noise operation of just 40 dB. The integrated 3-layer air filtration system helps remove dust and particles from the air, while Turbo mode provides fast cooling or heating when needed.
Lowe environmental impact and Home-Protective Design
The system uses R32 refrigerant, reducing environmental impact without compromising performance. The Home Freezing Prevention mode protects your home during cold periods, making this air conditioner both sustainable and safe.
Â
Save on installation costs
Why pay for a full installation when you can prepare a large part of the work yourself?
The Qlima SCM 70 DUO is designed with ease of use in mind. You receive two indoor and an one outdoor unit. The required pipe set must be purchased separately (EAN 8713508784496).
The pipes have a length of 4 meters and cannot be shortened or extended. By installing the indoor and outdoor unit yourself, you can reduce the total installation costs compared to traditional split air conditioners. The final connection of the refrigerant lines must always be carried out by a certified professional.
All benefits
- Duo-split (1:2)
- Quick Connector System
- Cools with label A+++
- Heats with label A++
- Smart connect
- Sleep mode
- Timer function
- Very silent
Specifications
Colour White
Country of production China
Material ABS
Model SCM 70 DUO
Warranty 3 years
EAN code 8713508004310
Dehumidifying mode Yes
Dimensions indoor unit (w x d x h) 820 x 195 x 306 mm
Dimensions indoor unit 2 (w x d x h) 820 x 195 x 306 mm
Dimensions outdoor unit (w x d x h) 852 x 349 x 603 mm
EAN indoor unit 8713508004358
EAN indoor unit 2 8713508004365
EAN outdoor unit 8713508004396
Energy class A+++ / A++
For rooms up to indoor unit 60 - 85 m³
For rooms up to indoor unit 2 80 - 100 m³
Heating capacity - pdesignh 4.6 kW
Included - remote control Yes
Indoor unit pieces 1
Inverter Yes
Net. weight - indoor unit 9 kg
Net. weight - indoor unit 2 9 kg
Net. weight - outdoor unit 32 kg
SEER / SCOP 8,5 / 4,6 W/W
SEER class A+++
SEER ratio 8.5 W/W
Sound power level indoor unit 2 (SWL) 54 dB
Sound power level outdoor unit (SWL) 66 dB
Timer function Yes
Weight - unit 50 kg
Gross weight 60 kg
Manuals and documentation
Manuals (2)
Product specifications (5)
Product Reviews
Spare parts
SpareArticles (1)
| EAN | Name |
|---|---|
| 8713508005270 | Kit tube set (1:2) with service SPHPCR103606 |
